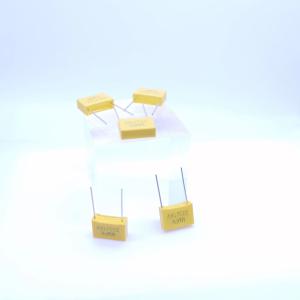

Polypropylene Film Resonance Capacitor 333J /1000V P15mm

Name: Polypropylene Film Resonance Capacitor 333J 1000V P15mm
Brand: HOWFINE
Price: 0.7 USD

China Polypropylene Film Resonance Capacitor 333J /1000V P15mm wholesale

Brand Name : HOWFINE

Model Number : MKP82 333/1000V P15MM

Place of Origin : China

MOQ : 10000 Pieces

Price : RMB 0.7-0.9PCS

Payment Terms : T/T

Supply Ability : 100000 Pieces per Month

Delivery Time : 7-15work days

Packaging Details : 500/bag, 12bags/small box, 2 small box/box,inner

Material : Polypropylene Film Capacitor

Capacitance : 0.033uF

Rated voltage : 1000V

Capacitance tolerances : ±5%(J)

Pitch : 15

Operating temperature range : -40 to +105℃

Color : yellow

Size : 18*13.5*7mm

Application : Used in electronic lighting (i.e. car headlamp and ballast)

Packing : in bulk

Dissipation Factor : less than 0.1%

Contact Now

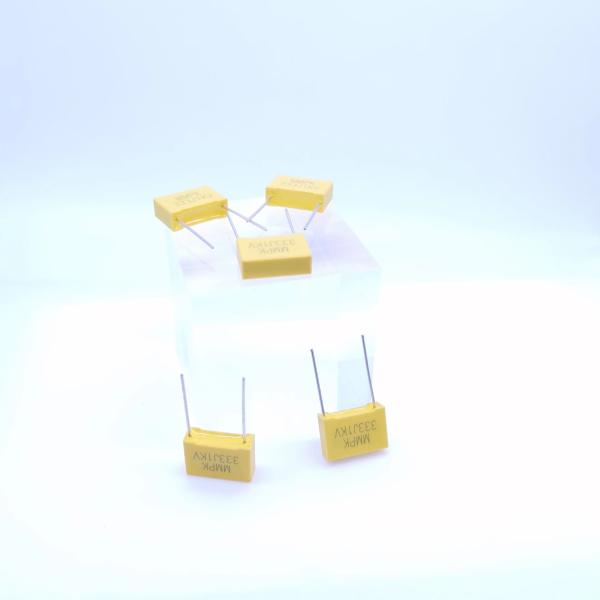

Resonance capacitor 333J/1000V P15mm

Metallised 333J/1000VPolyester Film Capacitor 33nF Polyester Film Capacitor 2 pin lead Terminal connection foot

Polyester film capacitors, also known as mylar, voltage drop and X-rated capacitors, use thin polyester film as the dielectric. These capacitors are non-polarised and are ideally suited for use in AC circuits. It is characterised by stability, low inductance and low cost.

Suitable for use in pulsed circuits, they are widely used for filtering, blocking, bypassing, coupling and noise reduction in a wide range of electrical equipment, electrical and electronic.

Polypropylene Film Resonance Capacitor 333J /1000V P15mm

1.SCOPE

This specification applies to film capacitors of following type.

Used in electronic lighting (i.e. car headlamp and ballast)

2.PRODUCT NAME

Polypropylene film capacitor of (AC and Pulse) use.

3.CONSTRUCTION

(Dimensions and materials)

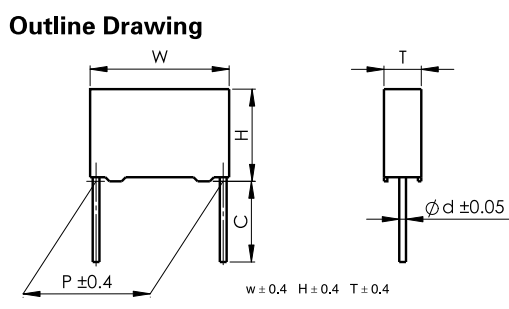

Dimensions : Refer to dimensions drawing Materials

1. Element : Polypropylene film＆Double sided metallized polyester film.

2. Metal spray : Special solder. (Lead Free)

3. Lead wire : Tinned copper clad-steel wire. (Lead Free)

4. Inner coating : Epoxy resin filled. (UL-94V-0 Standard)

5. Outer coating : Plastic case. (UL-94V-0 Standard)

Polypropylene Film Resonance Capacitor 333J /1000V P15mm

4.CHARACTERISTICS

Standard atmospheric conditions.

Unless otherwise specified , the standard range of atmospheric

conditions for making measurements and tests is as follows:

Ambient temperature : 15 to 35℃

Relative humidity : 45 to 85 %

Air pressure : 86 to 106 kpa

If there may be any doubt on the results, measurements shall be made

within the following limits.

Ambient temperature : 20℃ ±5 ℃

Relative humidity : 60 to 70 %

Operating temperature range : -40 to +105℃

Operating temperature range is the range of ambient temperature for which

the capacitor can be operated continuously at rated voltage.
